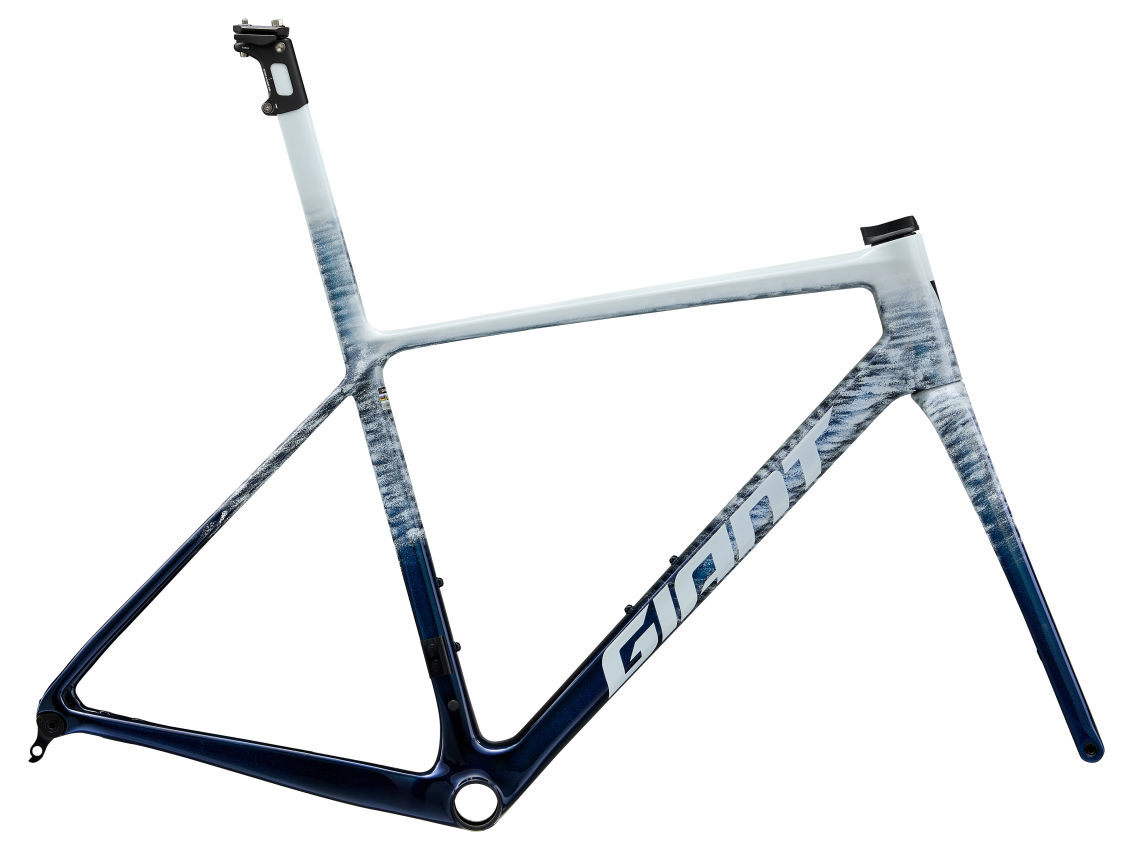

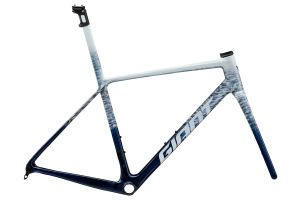

TCR Advanced SL Frameset

$4,500

Techs & Features

Advanced SL Composite Technology
Integrated Seatpost

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
ASeat Tube Length (mm) (inch)68026.87102874029.177030.380031.583032.7
BSeat Tube Angle (degrees)74.5°74.0°73.5°73.0°73.0°72.5°
CTop Tube Length (mm) (inch)52020.553521.155021.756522.258022.860023.6
DHead Tube Length (mm) (inch)1204.71305.11455.71656.51857.32007.9
EHead Tube Angle (degrees)71.0°72.3°73.0°73.0°73.0°73.0°
FFork Rake (mm) (inch)451.8451.8451.8451.8451.8451.8
GTrail (mm) (inch)72.12.8642.559.22.359.22.359.22.359.22.3
HWheelbase (mm) (inch)97638.497738.598038.699139100639.6102040.2
IChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.940515.9
JBottom Bracket Drop (mm) (inch)722.8702.8702.8672.6672.6672.6
KStack (mm) (inch)51720.452820.854521.556222.158122.959623.5
LReach (mm) (inch)37614.838315.138815.339315.540215.841216.2
MStand Over Height (mm) (inch)71928.373428.975229.676830.278630.980331.6
NHandlebar Width (mm) (inch)42016.542016.544017.344017.344017.344017.3
OStem Length (mm) (inch)803.1903.51003.91104.31104.31204.7
PCrank Length (mm) (inch)1656.51656.51706.71706.7172.56.8172.56.8
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Atmosphere/Stealth Chrome/Iris, Purple Storm, Terrain Tracker, Polar Tide, Dune Beige
  • Frame
    Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Giant Integrated Seatpost, -5/+15mm offset
  • Extras
    computer mount, Airway Eco Composite water bottle cage, 33mm max tire size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.
